Main features

1、Frequency conversion control system，start smoothly，separating factors can be adjusted；
2、Simple in structure, convenient for cooperation, and the process of feeding materials, pre-filtration, washing and fine filtration can be adjusted at any accordingly;
3、Material crystals are not easy broken and it has a strong adaptability;
4、Manual bottom discharging, it can reduce the intensity of work and improve production efficiency;
5、The engine base is a platform structure, so it not only lowers the gravity center of the machine，makes the machine works more smoothly, but also acts as an operation platform and makes operation more easier;
6、It is equipped with high viscosity liquid damping shock absorber, thus it can eliminate vibration more effectively, and simplify daily maintenance;

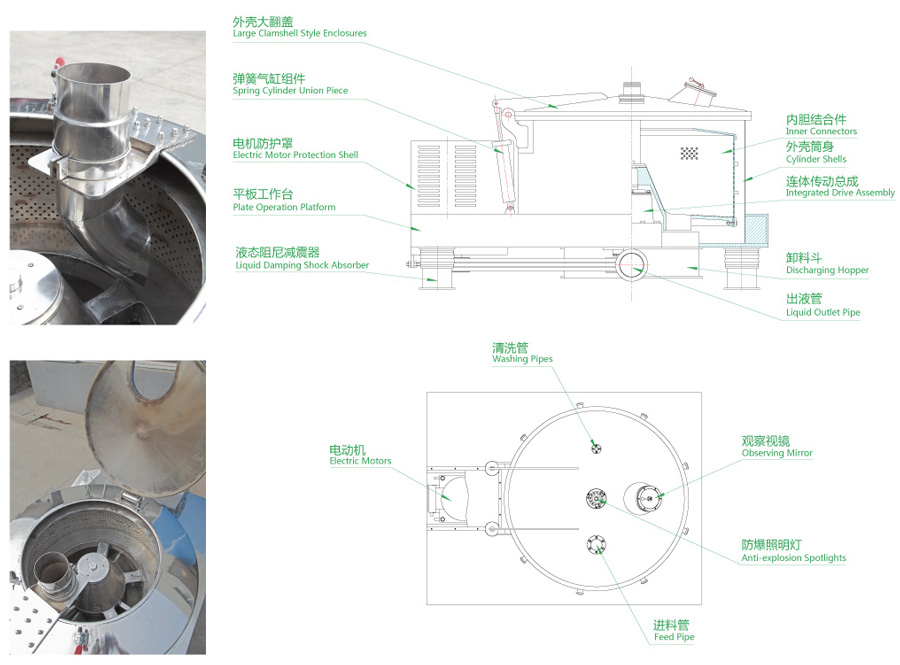

Assembly

1.Open-designed enclosures；
2.Ordinary electric motors or anti-explosion electric motors；
3.Frequency conversion control system and non-contact braking system；
4.Equipped with liquid damping shock absorber；

Optional assembly

1.Small clamshells，anti-explosion spotlights, feed pipes, dip pipes, observing mirrors；
2. Protection device for over shock；
3. Explosion-proof button;
4.The relevant building materials are selected according to the erosion-proof requirements of the materials to be processed: stainless steel 304, 316, 316L and 321, etc. Titanium materials or carbon steel with plastic, rubber or Halar inset on the surface.

Technical parameter
