Main features

1、Frequency conversion control system, start smoothly, separating factors can be adjusted;
2、Discharging by jumbo bag, it is easy to unload the materials and can reduce the intensity of work, improve production efficiency, at the same time, it can avoid pollution and scattering caused to the finished products by manpower;
3、Feed material is not easily broken;
4、The engine base and the enclosure are overall welded, so it has a larger load-carrying properties；
5、The engine base is a platform structure, it not only lowers the gravity center of the machine and makes the machine works more smoothly, but also acts as an operation platform and makes operation more easier;
6、It is equipped with high viscosity liquid damping shock absorber, thus it can eliminate vibration more effectively, and simplify daily maintenance;
7、Reasonable designed structures, the enclosures are designed into large clamshells, and it is easy to have a thorough cleaning of the sandwich pace between the enclosures and the rotary drums of the centrifuges. The accessories and components of the inner parts contacting the materials and the outer parts as well as the fasteners are all made of stainless steel.
8、It has a seal structure, and the sealing parts are made of silicon rubber or fluorine rubber, so it can meet the needs of sealing and explosion-proof, and it is used in toxic, inflammable and explosive situation;

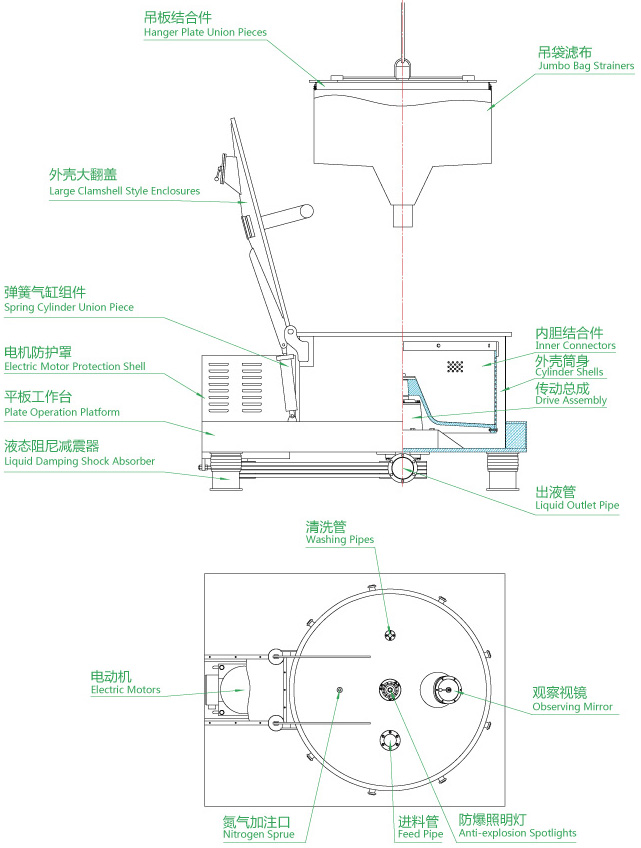

Assembly

1、Large clamshells and cylinder spring open cover devices, anti-explosion spotlights, feed pipes, dip pipes and observing mirrors；
2、Seal structure, it is sealed by silicon rubber or fluorine rubber;
3、Ordinary electric motors or anti-explosion electric motors；
4、Equipped with liquid damping shock absorber；
5、Frequency conversion control system and non-contact braking system;
6、One set of hanger for exclusive use when leaving the factory.

Optional assembly

1、Nitrogen protection devices；
2、Online cleaning devices；
3、Protection device for opening the clamshells;
4、Protection device for over shock;
5、Explosion-proof button；
6、Cyclone devices；
7、The relevant building materials are selected according to the erosion-proof requirements of the materials to be processed: stainless steel 304, 316, 316L and 321, etc. Titanium materials or carbon steel with plastic, rubber or Halar inset on the surface.

Techinical Parameters
