Main features

1、Frequency conversion control system，start smoothly，separating factors can be adjusted;
2、Feed materials are not easily broken;
3、High universality and used in a wide range;
4、The engine base and the enclosure are overall welded, so it has a larger load-carrying properties;
5、The engine base is a platform structure, so it not only lowers the gravity center of the machine，makes the machine works more smoothly, but also acts as an operation platform and makes operation more easier;
6、It is equipped with high viscosity liquid damping shock absorber, thus it can eliminate vibration more effectively, and simplify daily maintenance;
7、Reasonable designed structures，the enclosures are designed into large clamshells，and it is easy to have a thorough cleaning of the sandwich pace between the enclosures and the rotary drums of the centrifuges. The accessories and components of the inner parts contacting the materials and the outer parts as well as the fasteners are all made of stainless steel.
8、It has a seal structure, and the sealing parts are made of silicon rubber or fluorine rubber, so it can meet the needs of sealing and explosion-proof, and it is used in toxic, inflammable and explosive situation;
9、Optional online cleaning devices are used to clean the centrifuge enclosure walls, the internal and external surfaces of the rotary drums, the surfaces of the liquid collecting tanks and other invisible parts of the centrifuges, thus they ensure to meet the requirement of cleanliness and fit into the GPM criterion.

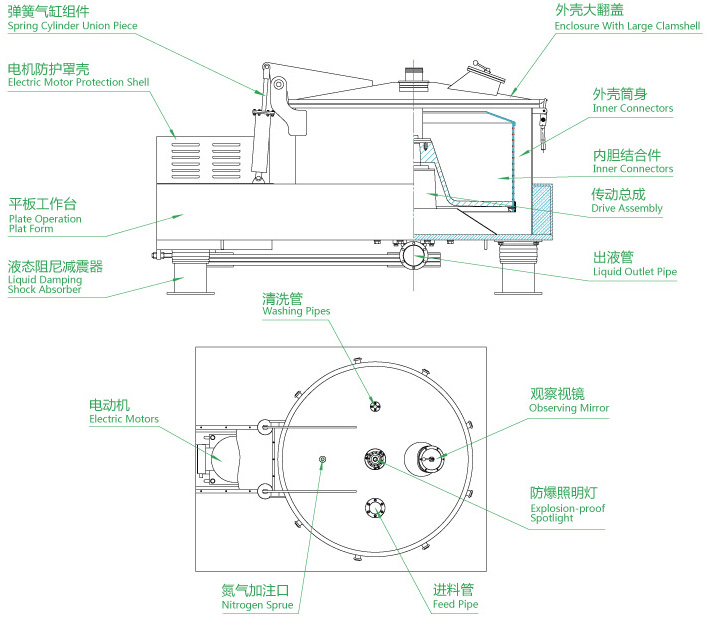

Assembly

1.Open-designed enclosures;
2.Ordinary electric motors or anti-explosion electric motors;
3.Equipped with liquid damping shock absorber;
4.Frequency conversion control system and non-contact braking system.

Optional assembly

1、Small clamshells，anti-explosion spotlights, feed pipes, dip pipes, observing mirrors;
2、Large clamshells and cylinder spring open cover devices，anti-explosion spotlights, feed pipes, dip pipes and observing mirrors;
3、Nitrogen protection devices;
4、Online cleaning devices;
5、Protection device for over shock;
6、Protection device for opening the large clamshells;
7、Cyclone devices;
8、Explosion-proof button;
9、The relevant building materials are selected according to the erosion-proof requirements of the materials to be processed: stainless steel 304, 316, 316L and 321, etc. Titanium materials or carbon steel with plastic, rubber or Halar inset on the surface.

Technical parameter
