Main features

1、Frequency conversion control system, start smoothly, separating factors can be adjusted;
2、Discharging by jumbo bag, it is easy to unload the materials and can reduce the intensity of work, improve production efficiency, at the same time, it can avoid pollution and scattering caused to the finished products by manpower;
3、Feed materials are not easily broken;
4、The engine base and the enclosure are overall welded, so it has a larger load-carrying properties;
5、The engine base is a platform structure, so it not only lowers the gravity center of the machine, makes the machine works more smoothly, but also acts as an operation platform and makes operation more easier;
6、It is equipped with high viscosity liquid damping shock absorber, thus it can eliminate vibration more effectively, and simplify daily maintenance;
7、Reasonable designed structures, the enclosures are designed into large clamshells, and it is easy to have a thorough cleaning of the sandwich pace between the enclosures and the rotary drums of the centrifuges. The accessories and components of the inner parts contacting the materials and the outer parts as well as the fasteners are all made of stainless steel.
8、It has a seal structure, and the sealing parts are made of silicon rubber or fluorine rubber, so it can meet the needs of sealing and explosion-proof, and it is used in toxic, inflammable and explosive situation;

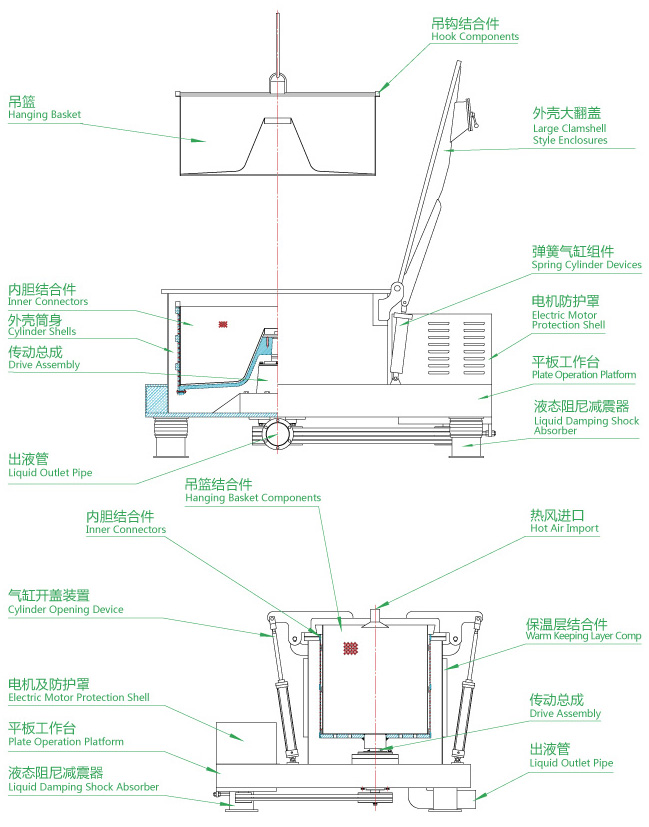

Assembly

1、Equipped with a small clamshell;
2、Equipped with a common electric motor；
3、Equipped with frequency conversion control system and non-contact braking system；
4、Equipped with liquid damping shock absorbe；

Optional assembly

1、Large clamshell and spring cylinder opening device;
2、Warm keeping device (Heating tube or Hot air devices, Warm keeping layer on the enclosure);
3、Pneumatic or hydraulic pressure opening and control device;
4、Protection device for opening the large clamshells；
5、Protection device for over shock；
6、Clean equipments, the surface of the platform is wholly covered by stainless steel;

Technical parameter

Notes：
1、The loading weight limit is contained in the basket weight
2、Because the difference of the loading material, the material distribution is different; Before you order the machine, the specific configuration and parameter of the dehydrator must meet the parameters that the client and the company technical department agreed;
