Main features

1、It has a siphon function and increases the filtering driving force, so it is quite suitable for the processing of materials with bigger viscosity;
2、It is equipped with recoil device, and the recoil liquid can be filled to the siphon room via the recoil device, then the recoil liquid flows to the rotary drum through the filter medium, making the filter medium recover its filtering function, and renewed again;

Working principle

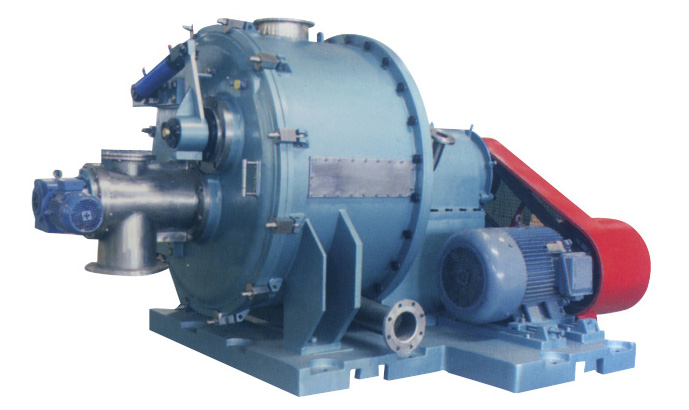

GKH horizontal siphoning scraper discharging centrifuge can increase the filtering driving force using the siphon principal on basis of the ordinary horizontal centrifuges. All the filtrate through the filter medium enters the filtrate tank, and then discharges out of the rotary drum through the siphon pipe. During the filtering process, the depth of the filtrate in the tank can be altered by adjusting the position of the siphon pipe inlet, thus the filtering driving force is changed also, so are the rate of filtration, processing ability, moisture content of the filter cakes and the washing efficiency.

Technical parameter
